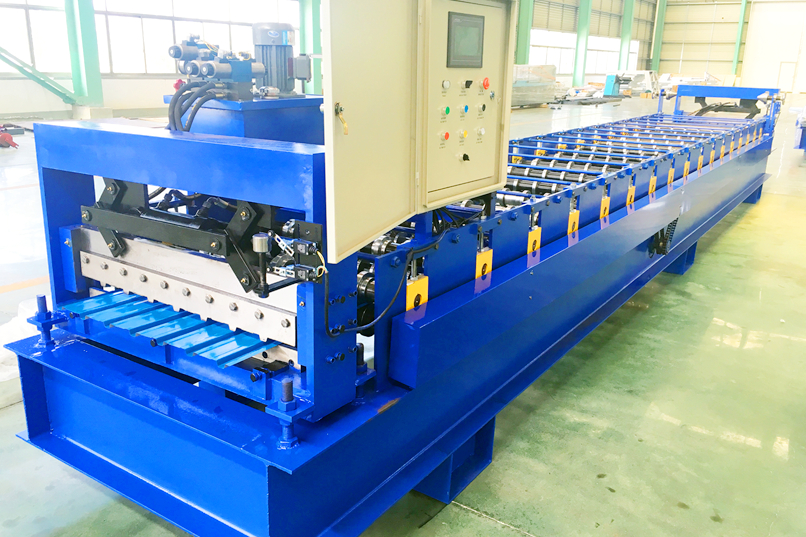

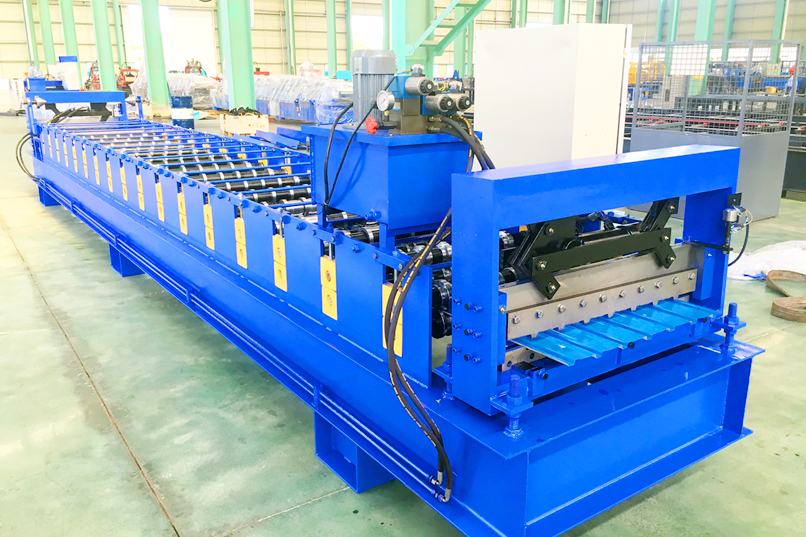

YX15-122-732 Cladding Sheet Roll Forming Machine

USEFUL WIDTH(mm)

732±5

FEEDING WIDTH(mm)

914/940

ROOFING CLADDING
CEILING DECKING

THICKNESS(mm)

0.3-0.8

1. Phase/voltage/frequency

1. Customize

1. Driven type

1. Asynchronous motor + reducer + chain

1. Productivity

1. 10-15m/min

1. Length tolerance

1. ±2mm

1. Roller material

1. GCr15 bearing steel chromed

1. Spindle material

1. 40Cr thermal refining

1. Spindle diameter

1. Approx 70mm

1. Spindle side wall thickness

1. Approx 16mm

1. Installed pre-cutting

1. Manual clipper cutter

1. Installed post cutting

1. Automatic hydraulic post cutting

1. During production

1. HMI PLC (TXT display)

1. Manual decoiler

1. Manually expansion

1. Loading capacity

1. Max. 5tons

1

Manual decoiler

1Nos

2

Feeding, guiding and pre-cutting unit

1Nos

3

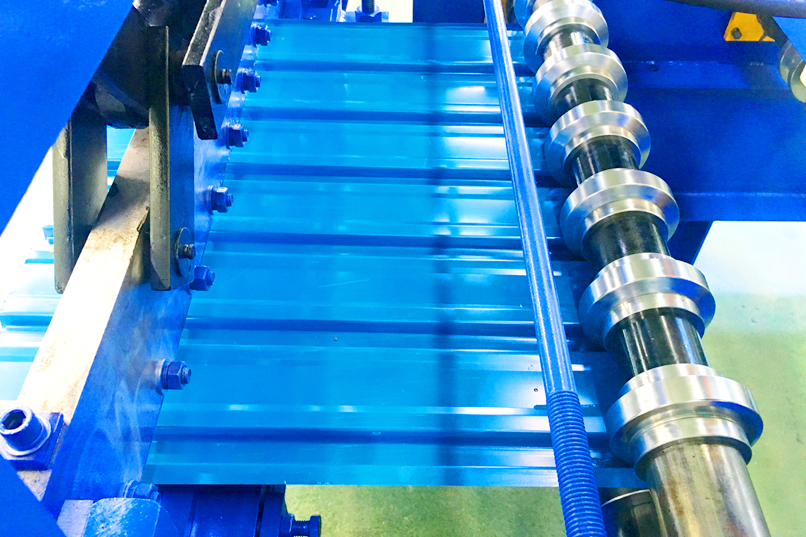

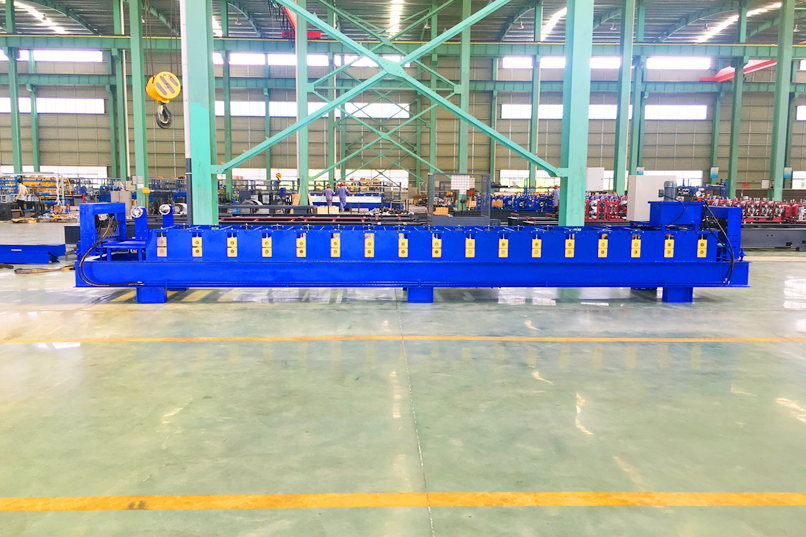

Main roll forming machine

1Nos

4

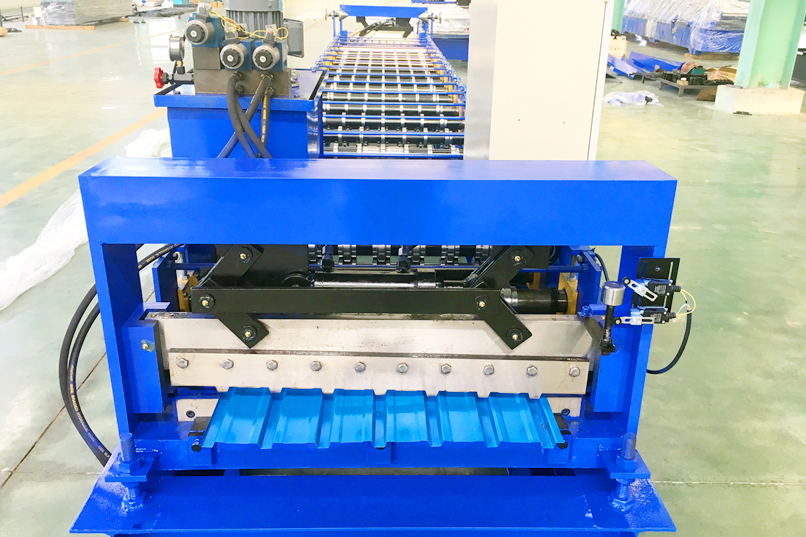

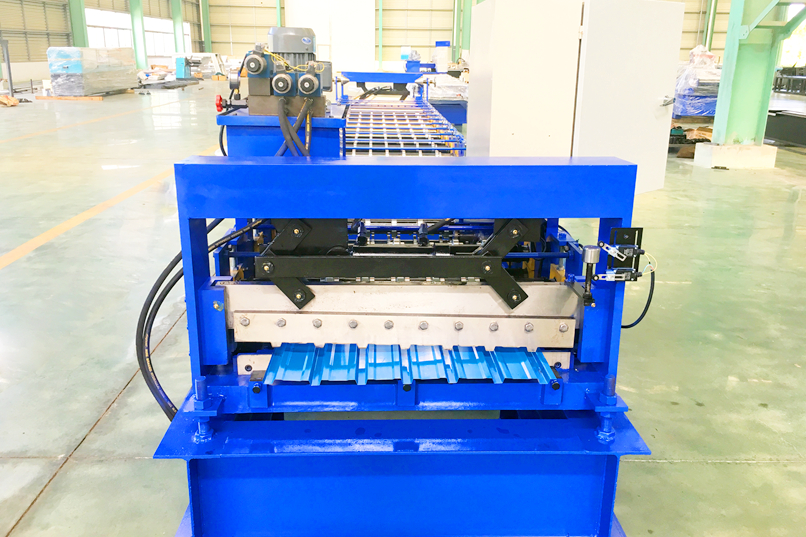

Hydraulic post shearing unit

1Nos

5

Control cabinet

1Nos

6

Spare parts and tools

1Nos
