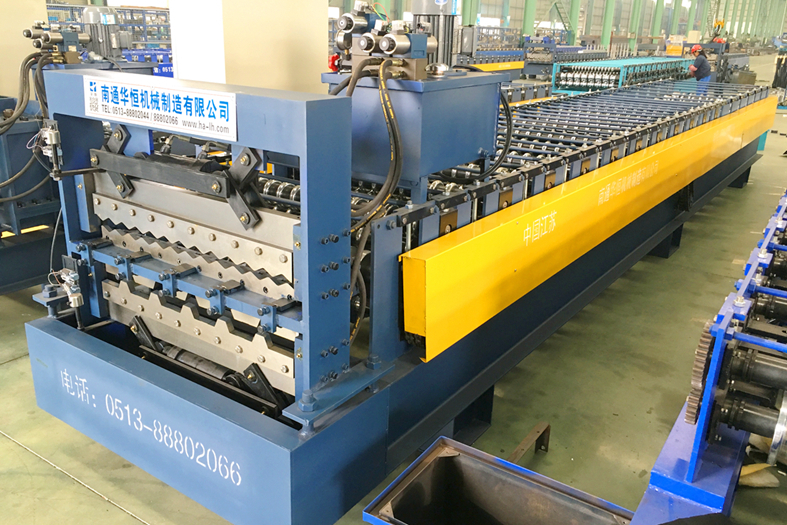

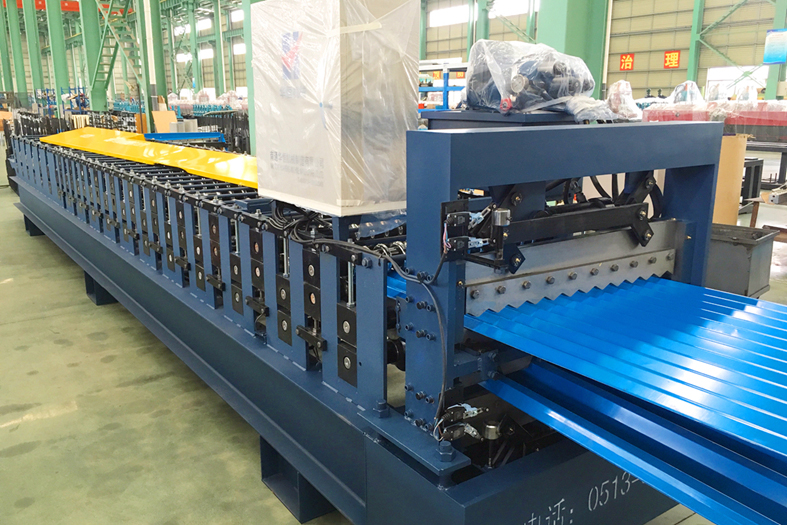

YX17-77.8-777.8/35-171.5-686 IBR Corrugated Machine

Technical Parameter

IBR and Corrugated Sheet Machine Configurations | Model: YX17-77.8-777.8/35-171.5-686

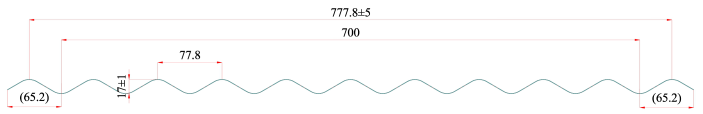

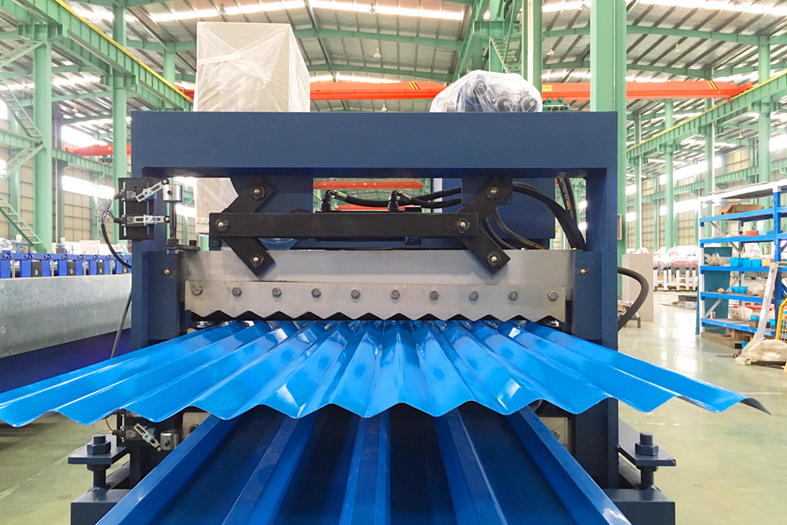

Profiles:

PROFILE	YX17-77.8-777.8/35-171.5-686	APPLICATION
USEFUL WIDTH(mm)	777.8/686±5	APPLICATION
FEEDING WIDTH(mm)	914/925	ROOFING CLADDING CEILING DECKING
THICKNESS(mm)	0.27-0.8	ROOFING CLADDING CEILING DECKING

Flow chart:
Decoiling – Feeding - Roll forming - Cutting - Stacking

Equipment series	E Series
Phase/voltage/frequency	Customize
Driven type	Asynchronous motor + reducer + chain
Productivity	10-15m/min
Length tolerance	±2mm
Roller material	GCr15 bearing steel chromed
Spindle material	40Cr thermal refining
Spindle diameter	Approx 70mm
Spindle side wall thickness	Approx 16mm
Installed pre-cutting	Manual clipper cutter
Installed post cutting	Automatic hydraulic post cutting
During production	HMI PLC (TXT display)
Manual decoiler	Manually expansion
Loading capacity	Max. 5tons

Main Components:

Item	Description	Quantity
1	Manual decoiler	2Nos
2	Feeding, guiding and pre-cutting unit	1Nos

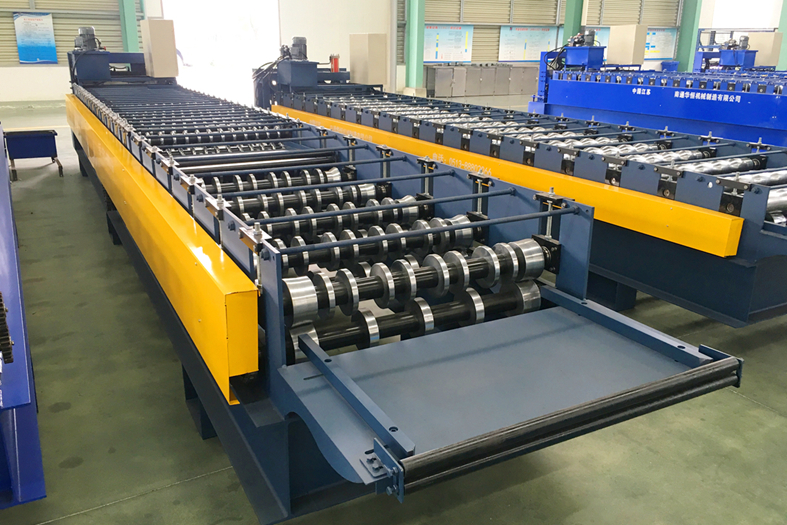

3	Main roll forming machine	1Nos

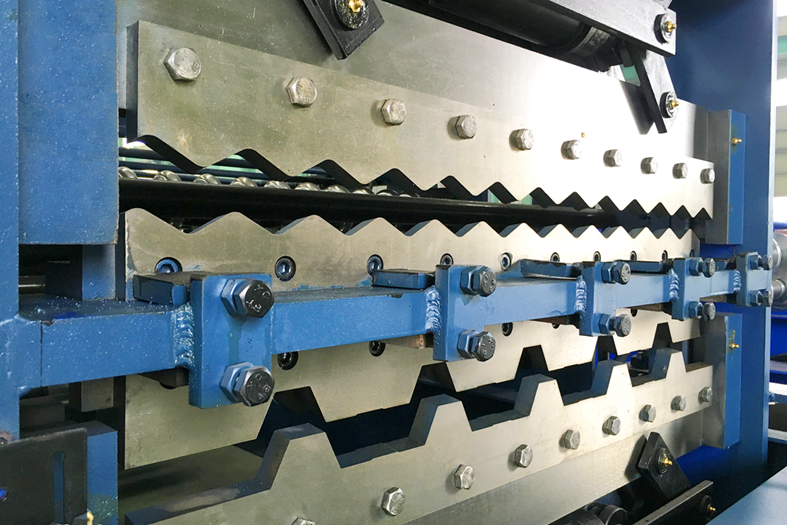

4	Hydraulic post shearing unit	1Nos

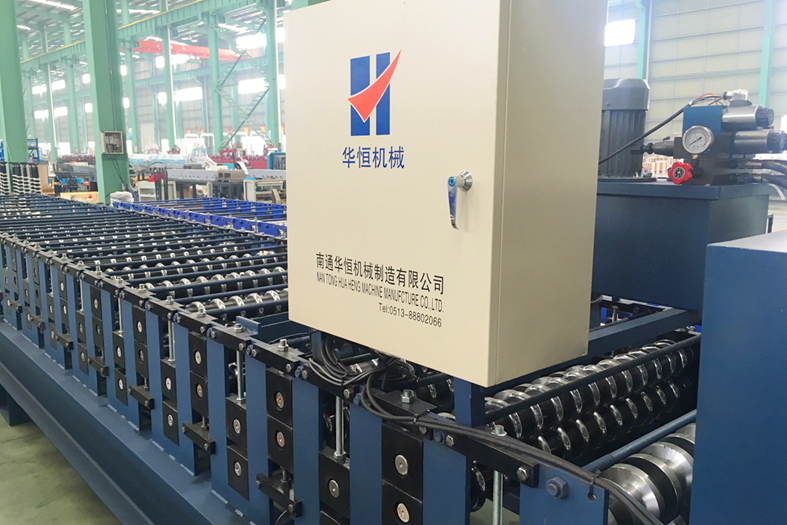

5	Control cabinet	1Nos
6	Spare parts and tools	1Nos
