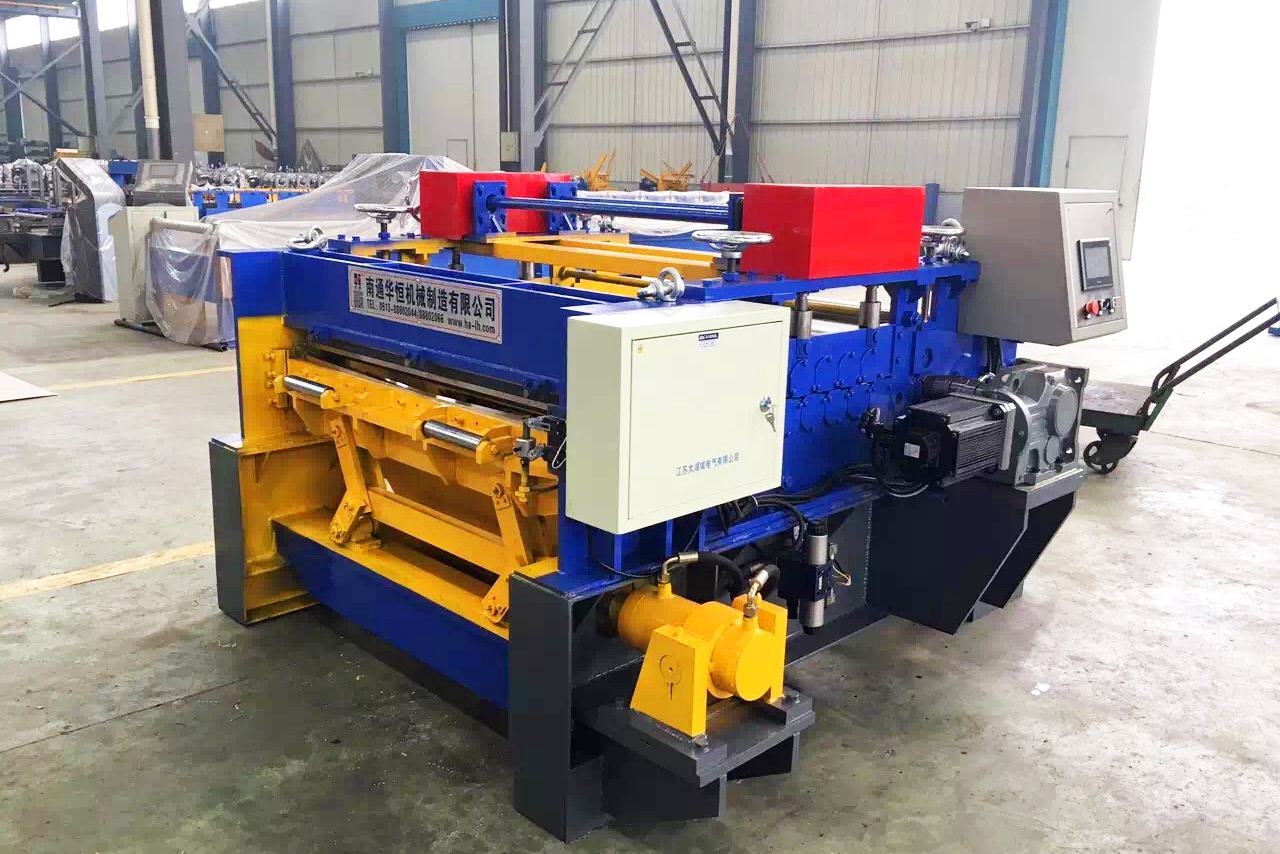

Production flow:
Decoiling → Feeding → Slitting → Cutting to length → Out-putting
Main components:

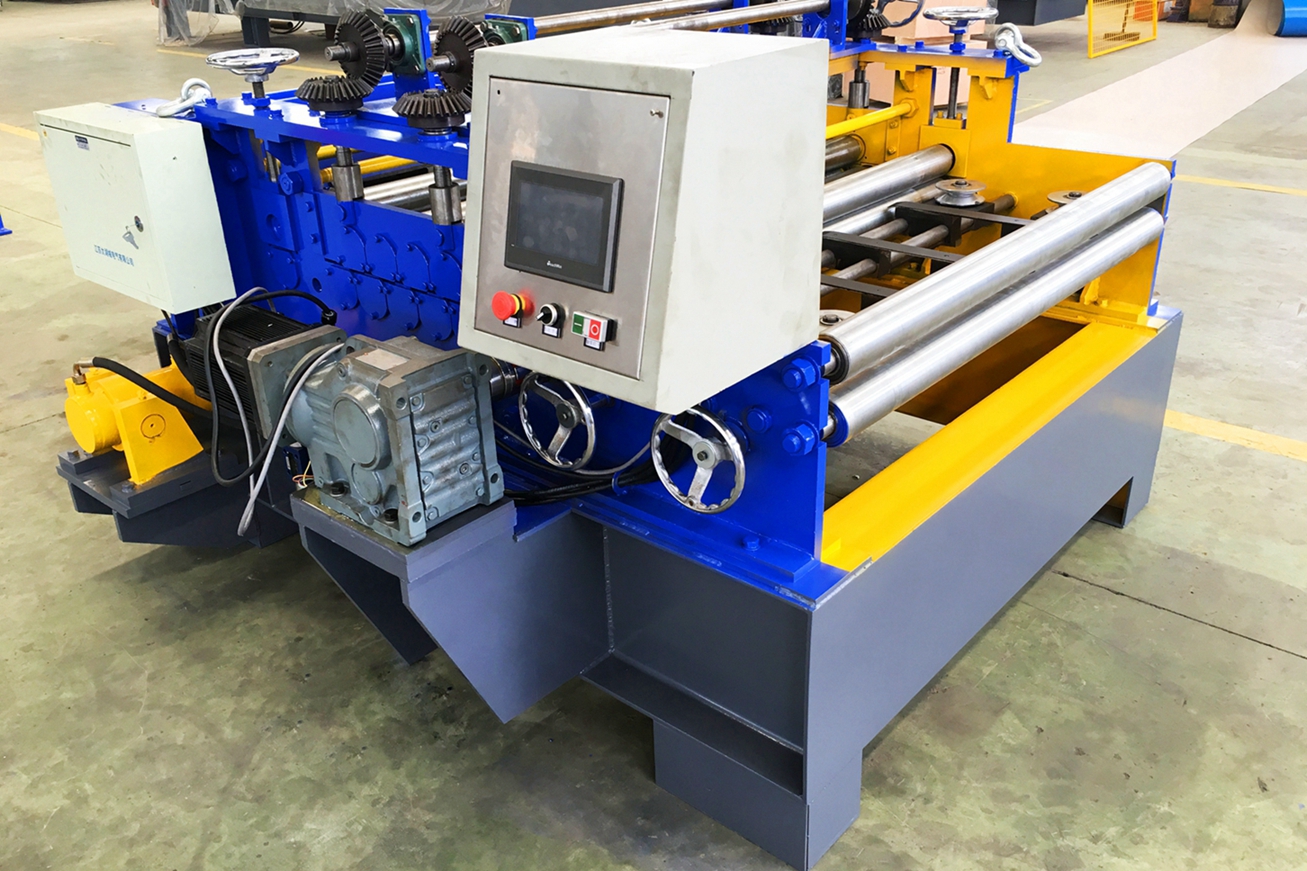

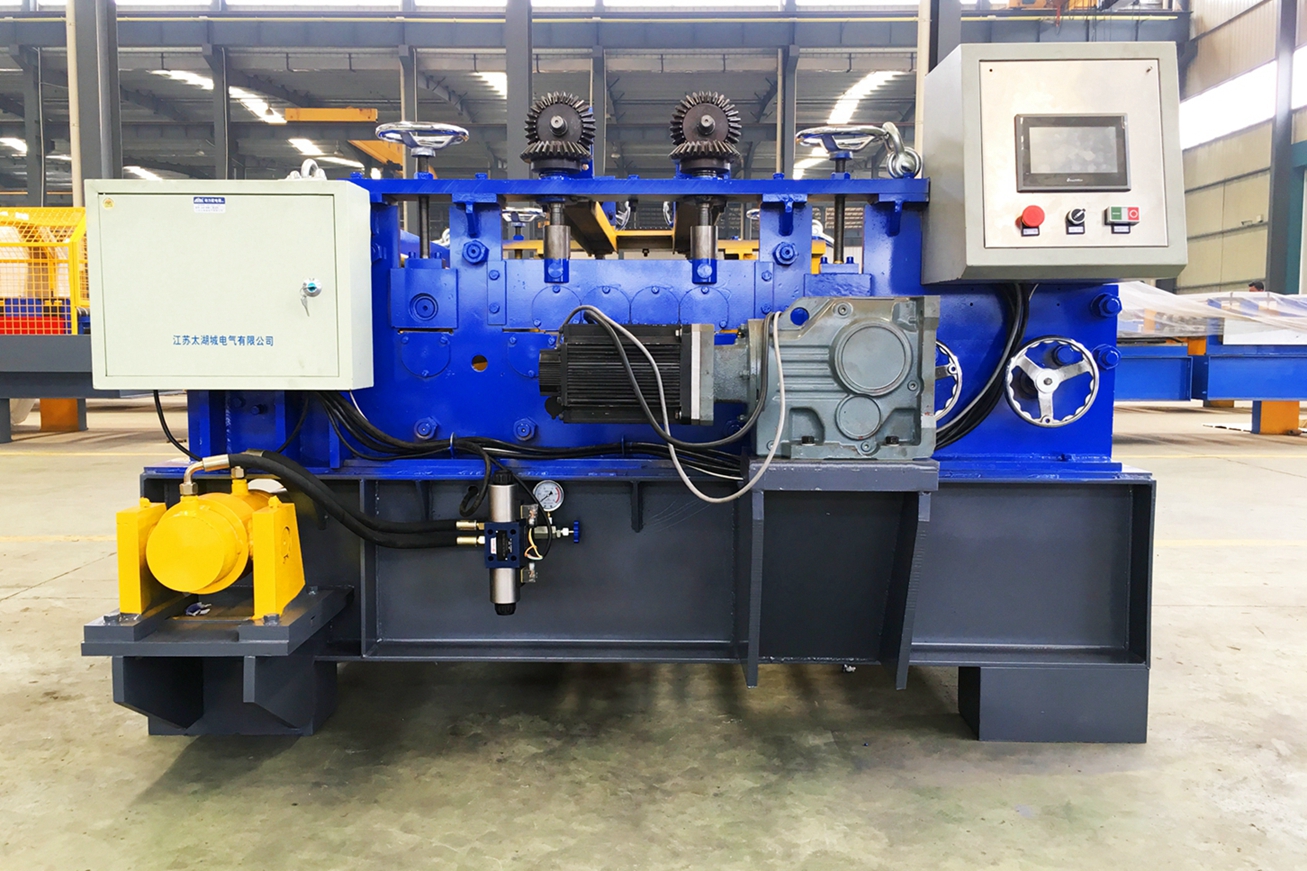

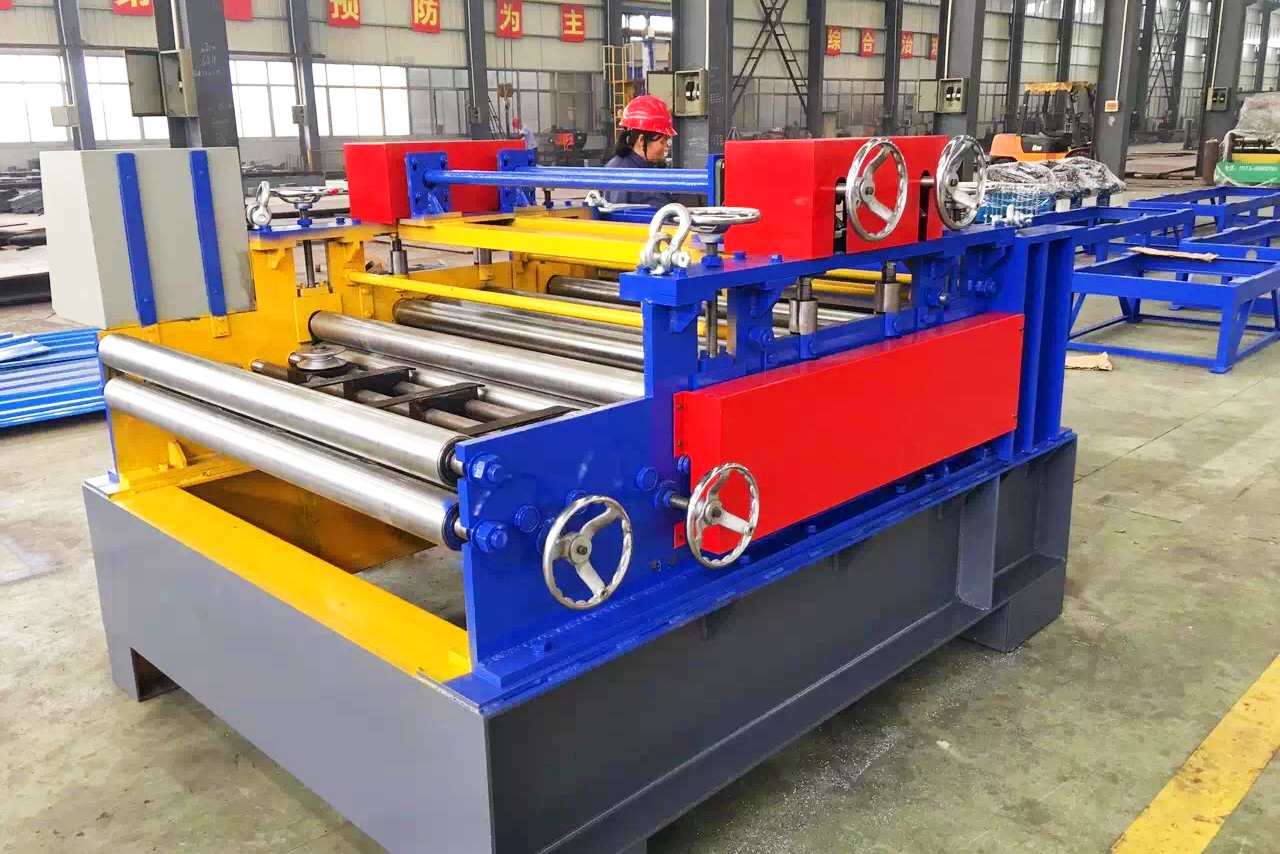

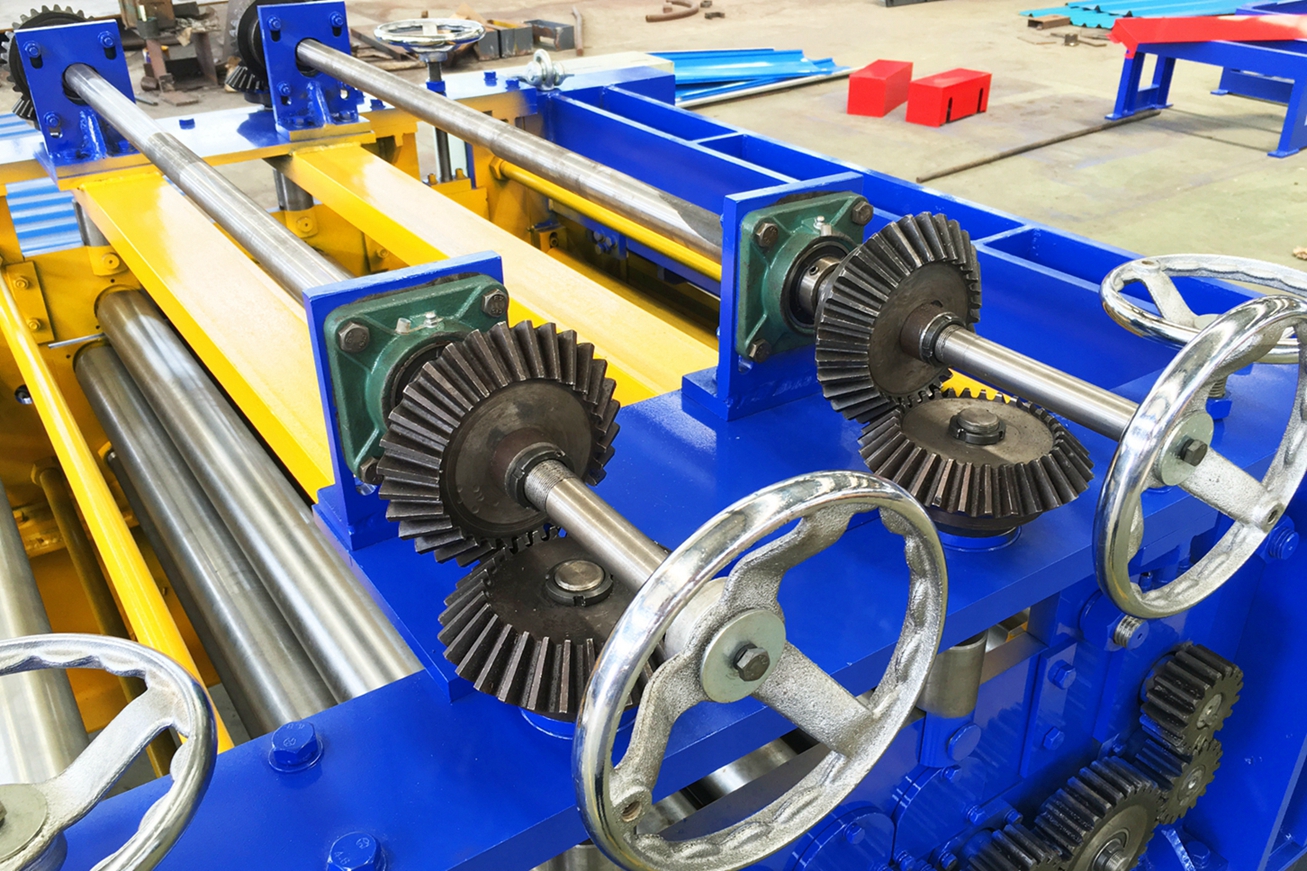

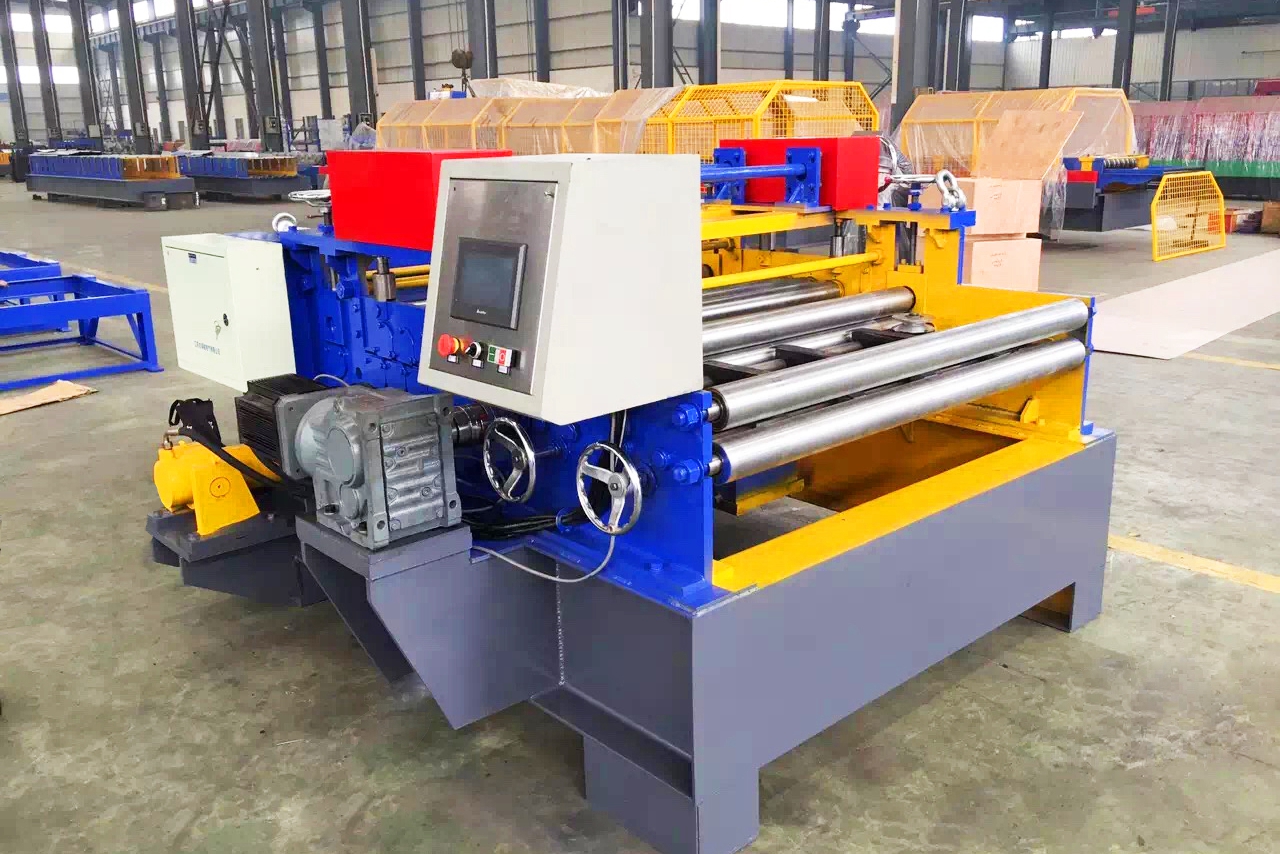

No. | Description | Quantity |
1 | Decoiler | 1 Nos |
2 | Feeding, guiding, flattening, slitting and cutting unit | 1 Nos |
3 | Control cabinet | 1 Nos |
4 | Spares and tools | 1 Nos |
No. | Description | Specification | |
Machine Model: CTL1300X2 | |||
1 | Performance | Transmission type | Servo motor + reducer + gear |
| Servo motor power | Approx 5kW | |
Hydraulic station motor power | Approx 3kW | ||
Productivity | 10-25m/min | ||
Length tolerance | ±1mm | ||
2 | Main machine | Flattening roller station | Upper 4stations plus lower 5stations |
| Roller material | GCr15 bearing steel chromed | |
Shaft material | 40Cr thermal refining | ||
Shaft diameter | Approx 90mm | ||
Machine wall plate thickness | Approx 16mm | ||
3 | Slitting | Slitting roller blade quantity | 3 Nos (Customize-able) |
| Slitting width | Manually adjustable | |
Slitting roller blade material | Cr12Mov | ||
4 | Cutting | Cutting width | 0-1300mm |
| Cutting blade material | Cr12Mov | |
5 | Control | Production | HMI PLC (Touchscreen display) |
| Speed | Servomotor control | |
6 | Decoiler | Manual decoiler | Manually expansion |
| Loading capacity | Max. 5tons | |
Internal diameter of coil | 480mm-520mm | ||
Outer diameter of coil | Max. 1000mm | ||
Width of coil | Max. 1250mm | ||
Thickness of coil | 0.30-2.00mm | ||
Material of coil | GI,PPGI,PPGL,G550 | ||
7 | Electrics | PLC | Wuxi Xinje |
| Servo-motor | Wuxi Xinje | |
Encoder | Japan Omron | ||
HIM | China Touchwin | ||
Contactor | German Siemens | ||
Voltage regulator | German Siemens | ||
Relay | Japan Omron | ||
Limit switch | China CNTD | ||
