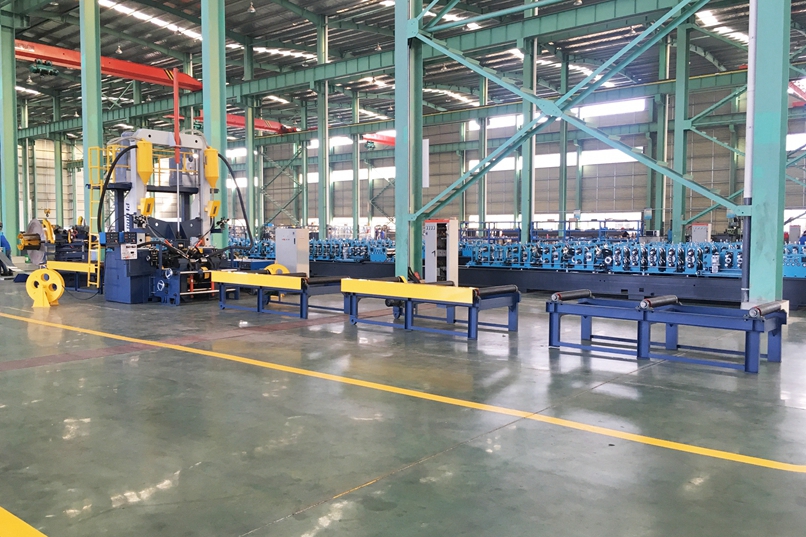

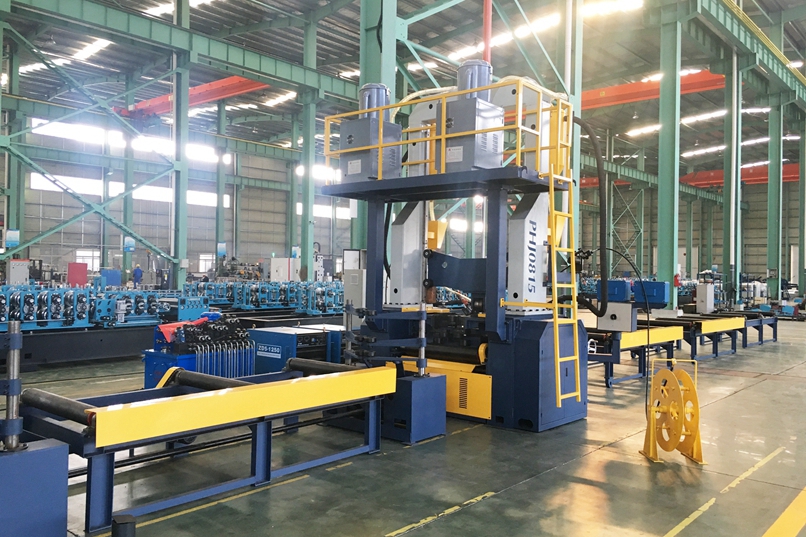

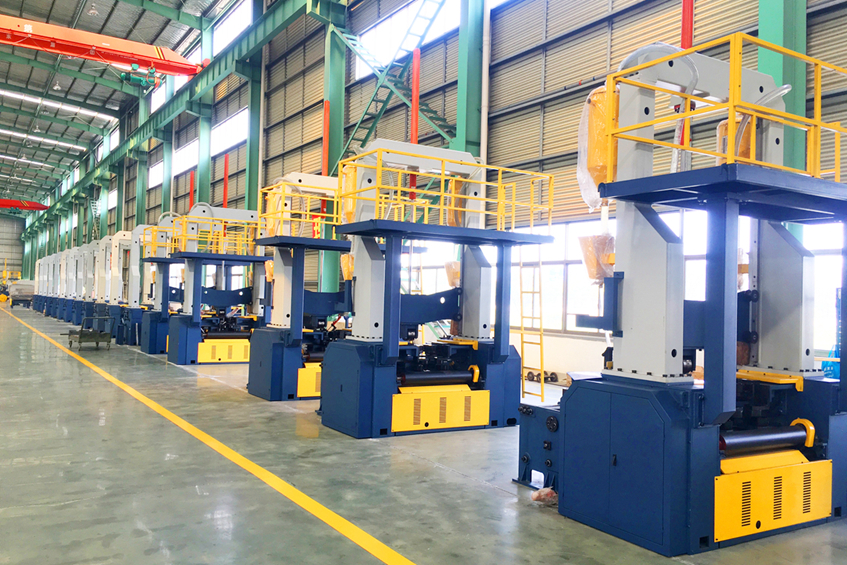

PHJ0815 Integarated H-Beam Steel Making Machine (Hot Sale)


Availability:



Inquire

Technical Parameter

Integrated H-beam Steel Making Machine Configurations | Model: PHJ0815

Flow chart:

(T-beam) Guiding - (T-beam) Assembling – (T-beam) Welding - (T-beam) Straightening — (T-beam) Out-putting - (T-beam) Overturning - (H-beam) Assembling - (H-beam) Welding - (H-beam) Straightening - (H-beam) Out-putting

No	Item	Performance
1	Flange width	200-800mm
2	Flange thickness	6-30mm
3	Web height	280-1500mm
4	Web thickness	6-20mm
5	H-beam length	1500-15000mm
6	Assembling type	Hydraulic guiding, centering, clamping and pressing

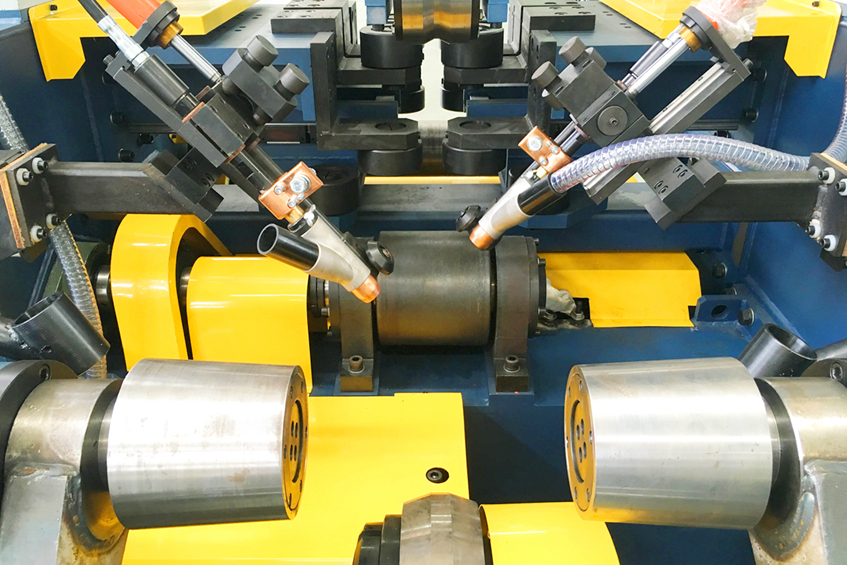

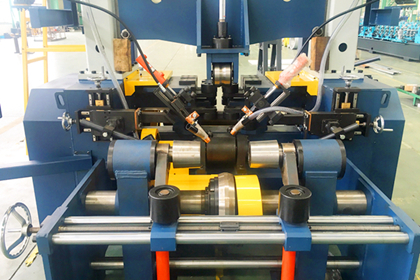

7	Welding type	Vertical/double-side/submerged-arc welding at the same time
8	Straightening type	Hydraulic double-side straightening
9	Welding head angel	45°+/-12
10	Fillet welding angel	approx 4-10mm
11	Production capacity	400-1200mm/min
12	Speed control	Ac frequency converter
13	Total power	approx 150kW
14	Installation space	35000mm×3000mm×5000mm

Main Components:

No	Description	Quantity
1	Main machine	1Nos
2	Electric control system	1Nos
3	Submerged-arc welding system	2Nos
4	Hydraulic system	1Nos
5	Welding flux recovery system	2Nos
6	In-put conveyor	1Nos
7	Out-put conveyor	1Nos
