CNC-4000 Oxy-fuel Plasma Cutting Machine

1

Cross Beam Length(X axis)

4000mm (Customize-able)

2

Longitudinal Rail Length(Y axis)

6000mm (Customize-able)

3

Effective Cutting Width (X axis)

3200mm (Customize-able)

4

Effective Cutting Length (Y axis)

4000mm (Customize-able)

5

Cutting Mode

CNC profiling and strip cutting

6

Drive Mode

Bilateral (Double sides’ driven)

7

Drive Method

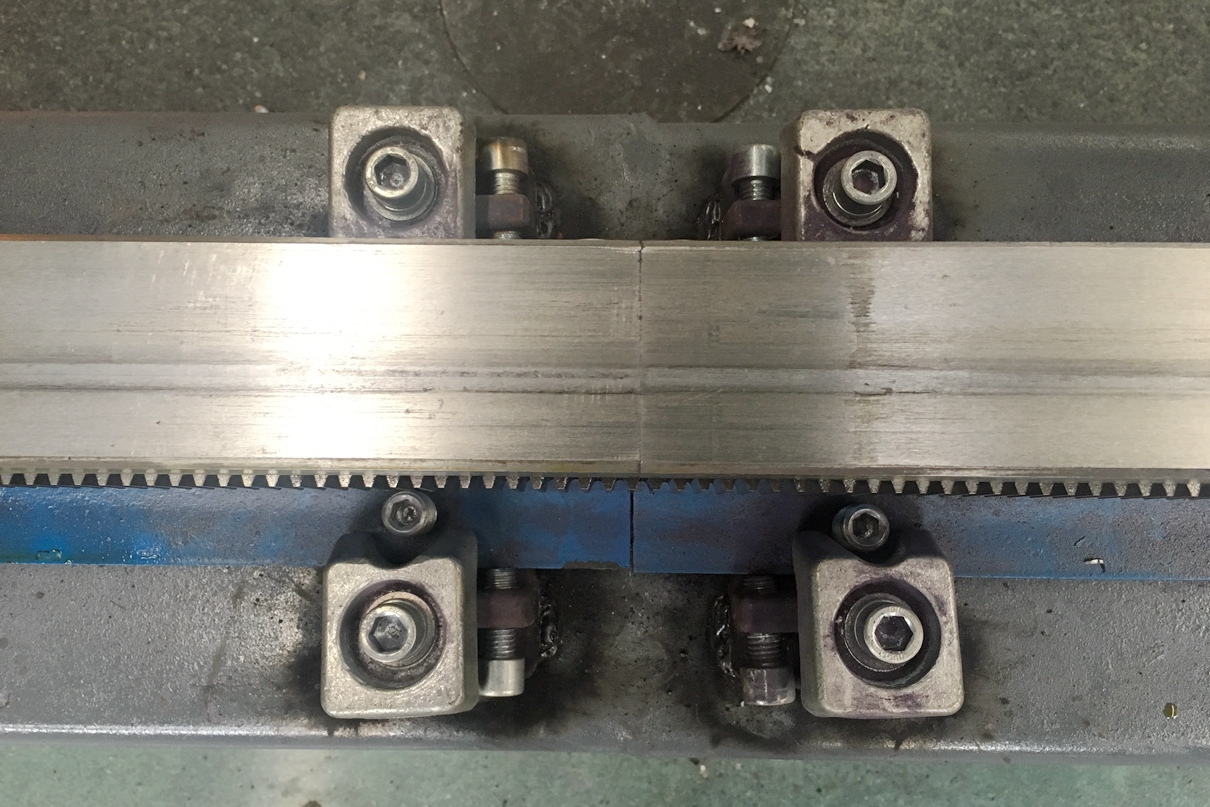

Rack and pinion drive for X and Y axis

8

Flame Cutting Thickness

6-200mm

9

Plasma Cutting Thickness

1-45mm (Quality cutting thickness 25mm)

10

Cutting Speed

0-6000mm per minute

11

Moving Precision

0.01mm per step

12

CAD CAM CNC Programming software

Australia FASTCAM

13

Controller

China Starfire SF2300S

14

Servo-motor and driver

Japan Panasonic

15

Reducer

Shanghai Gebao

16

Linear guideway

Taiwan Hiwin

17

Capacitance height controller

China HYD CHC-400

18

Arc-voltage height controller

China Ontime PTHC-II

1

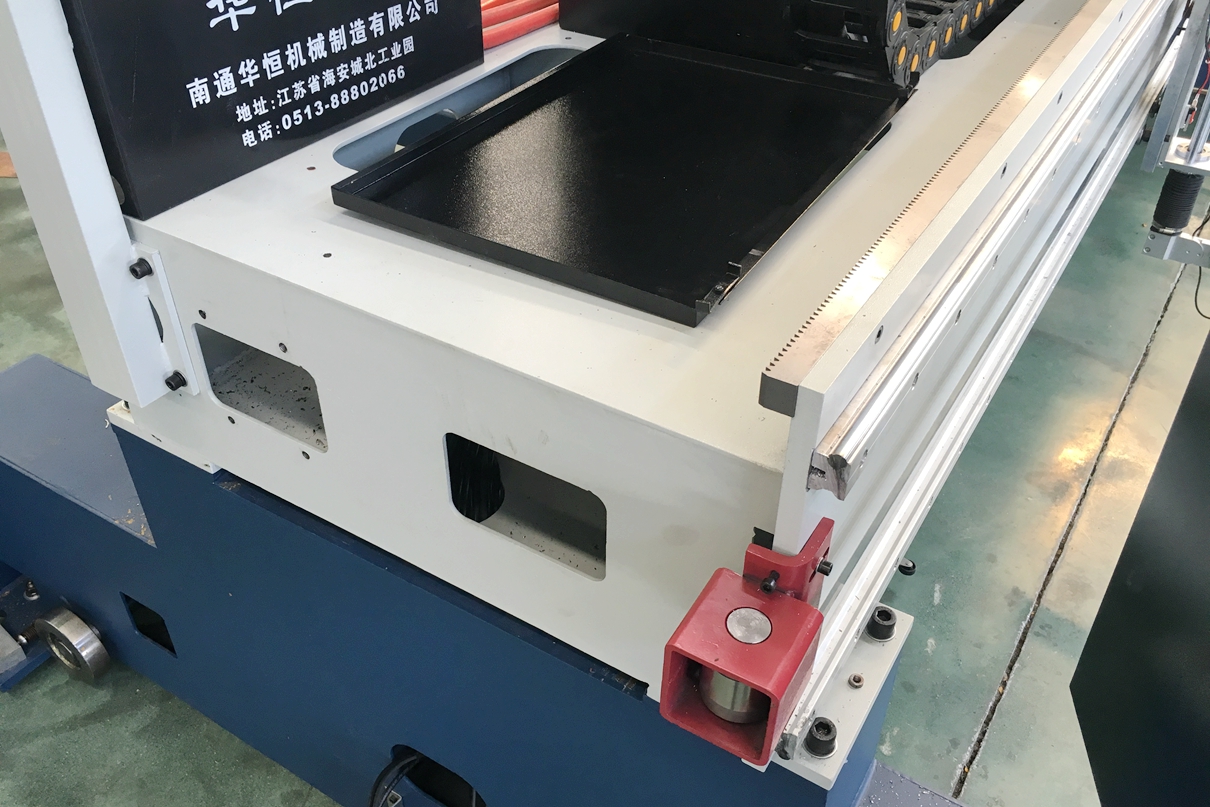

Heavy duty box beam frame

1Nos

2

Transverse transmission system

1Nos

3

Longitudinal transmission system

2Nos

4

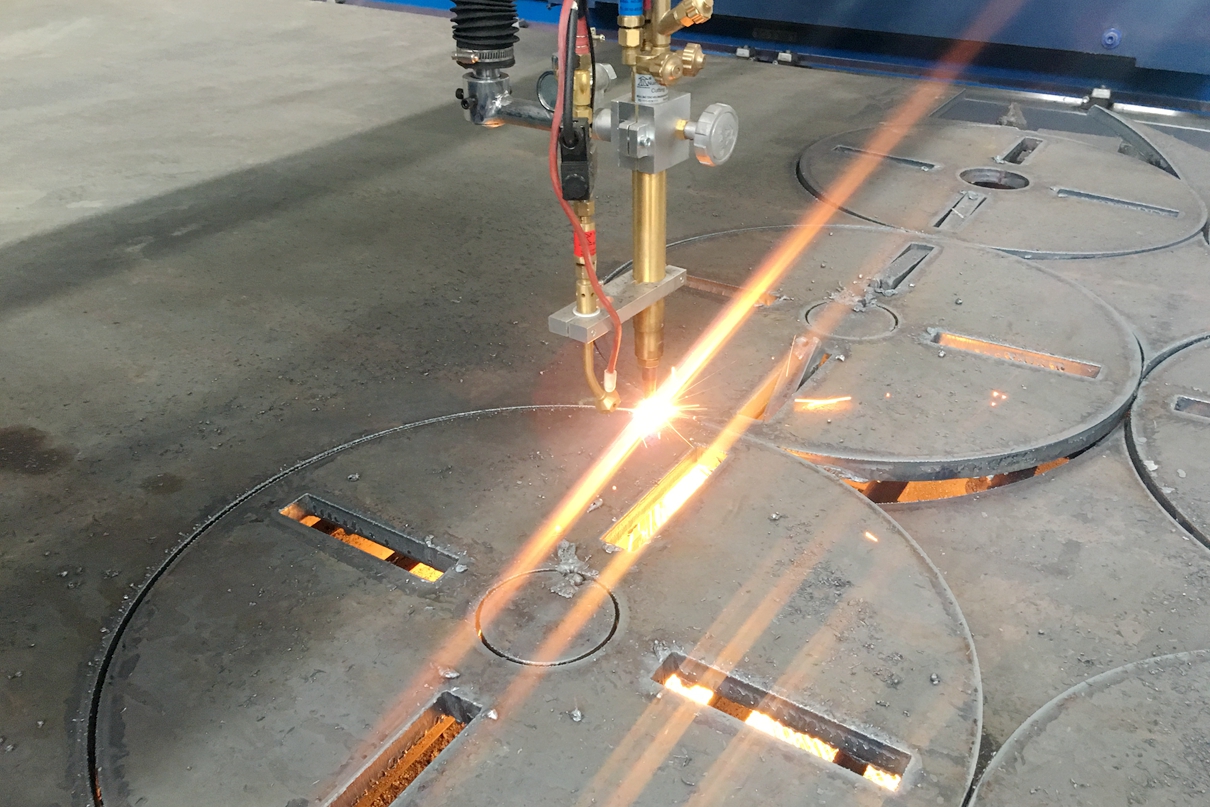

CNC single flame torch

1Nos

5

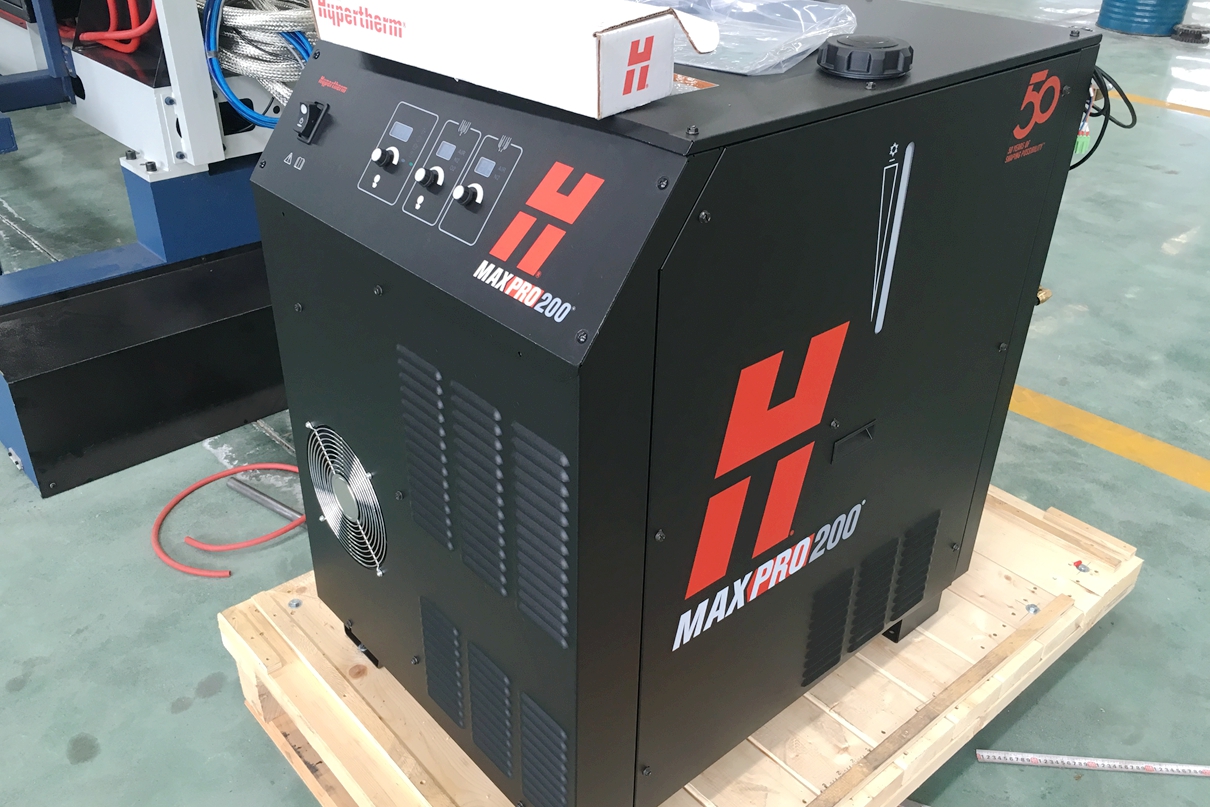

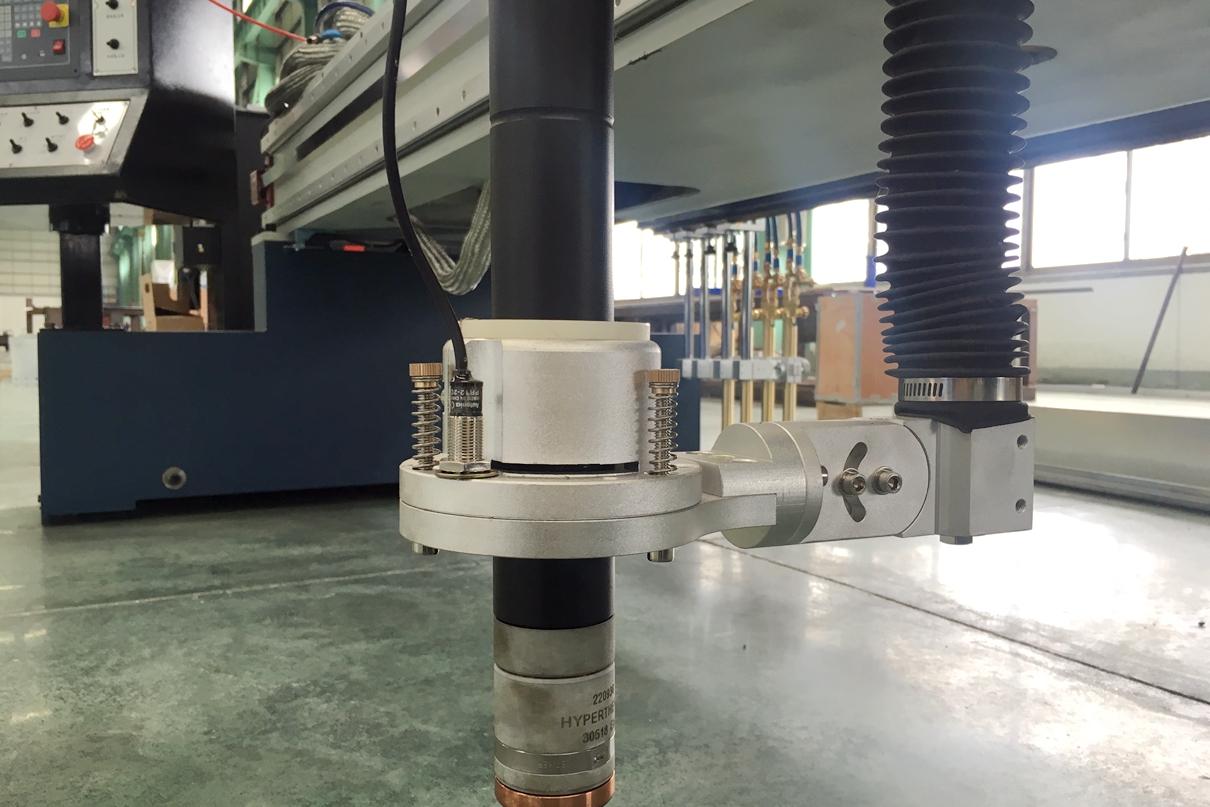

CNC single plasma torch (plasma powersource)

1Nos

6

Computer numercial controller

1Nos

7

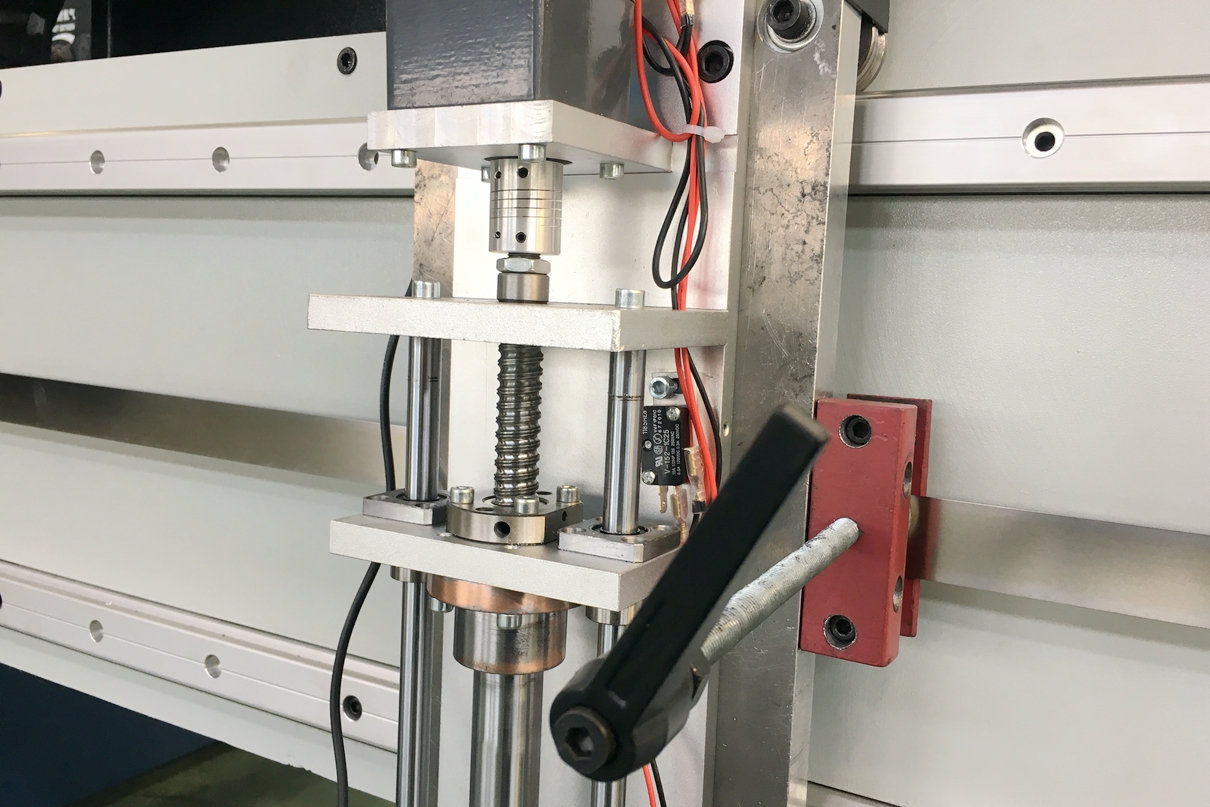

Capacitance height controller

1Nos

8

Arc-voltage height controller

1Nos

9

CAD CAM CNC Programming software

1Nos

10

Spares and tools

1Nos
