CZ Machine Configurations | Model: SAC80/Z120-300

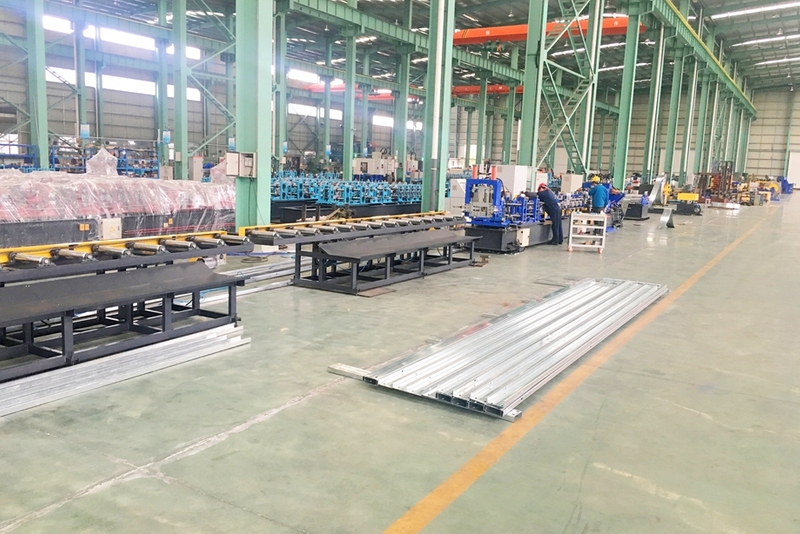

1. This machine is the industry's best value in a Fully automatic CZ(C+,Z+) Purlin production line.
2. Capable of producing the standard industry range of Cee (Cee+), Zee, U shapes 80-300mm.

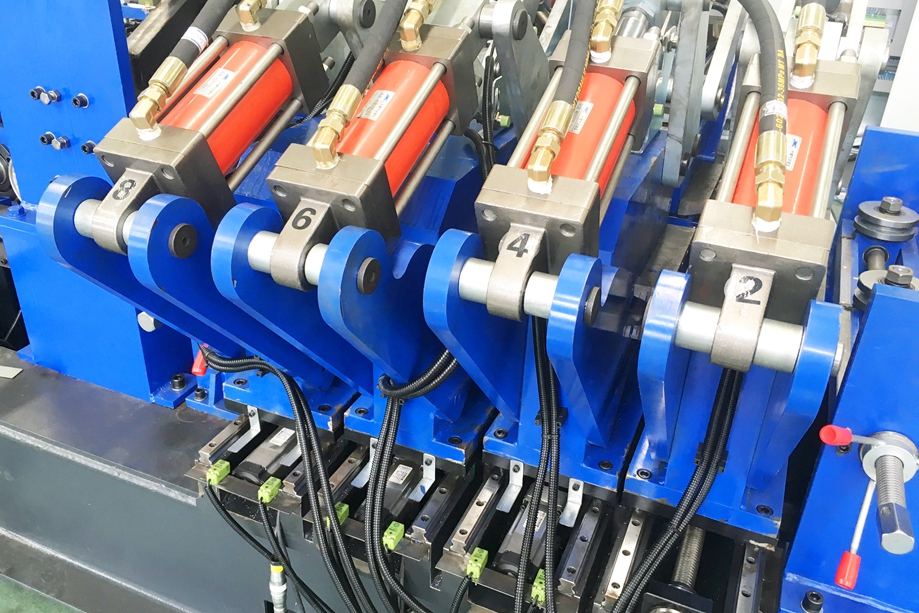

3. Providing programmable modular hydraulic punching and cutting.
4. Quick C/Z profiles and its size changeover times under 15 seconds.
5. European quality control, machine surface adopts podwer coating, coating before assembly.
6. Delivery capacity 220-300sets per year, the largest and most professional manufacturer in China.
Decoiling — Feeding — Flattening — Punching — Lip forming — Flange forming — Angle forming — Straightening — Cutting— Stacking
Profiles:
Profile | Web | Flange | Lip | Thickness |
C | 80-300mm | 40-80mm | 10-25mm | 1.2-3.2mm |
Z | 120-300mm | 40-80mm | 10-25mm | 1.2-3.2mm |
Yield strength | 195Mpa | 235Mpa | 345Mpa | 550Mpa |
Thickness | 1.2mm-3.2mm | 1.2mm-3.0mm | 1.2mm-2.7mm | 1.2mm-2.5mm |
Slotted hole | Round hole |
14x26mm(HOR.) | D14mm |
16x26mm(HOR.) | D16mm |
Slotted hole | Round hole |
18x42mm(HOR.) | D21mm |
24x42mm(HOR.) | D24mm |
Equipment series | Pre-punch Pre-cut |
Phase/voltage/frequency | Customize |
Driven type | Servo-motor |
CZ inter-change type | Automatic |
Size inter-change type | Automatic |
Pre-cutter | Optional |
Flange punch | Optional |
Decoiler | Manual decoiler |
Hydraulic decoiler (Optional) | |
Production capacity | Maximum 35m/min |
Length tolerance | ±1.5mm |
Note | Minimum purlin length 2m |
Components:
| Item | Description | Quantity |

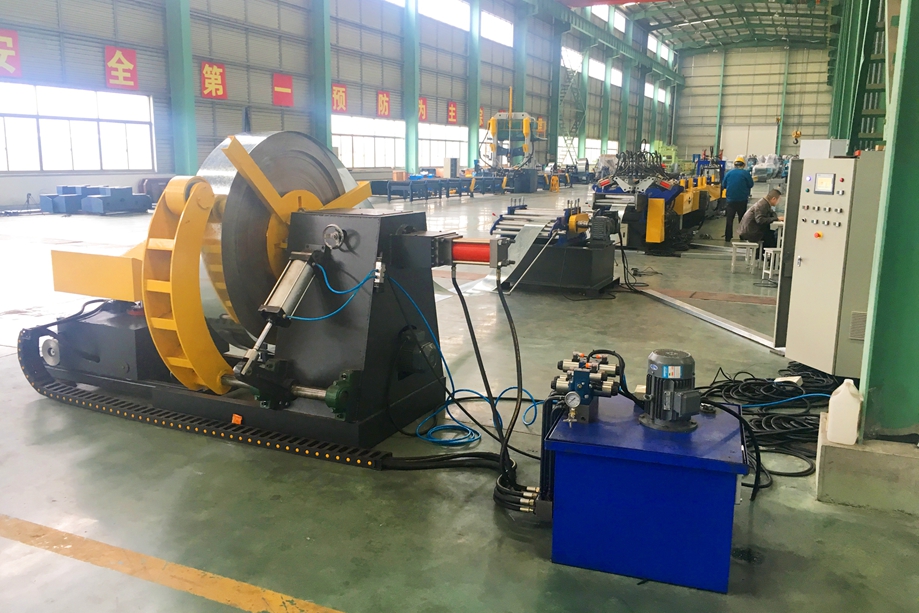

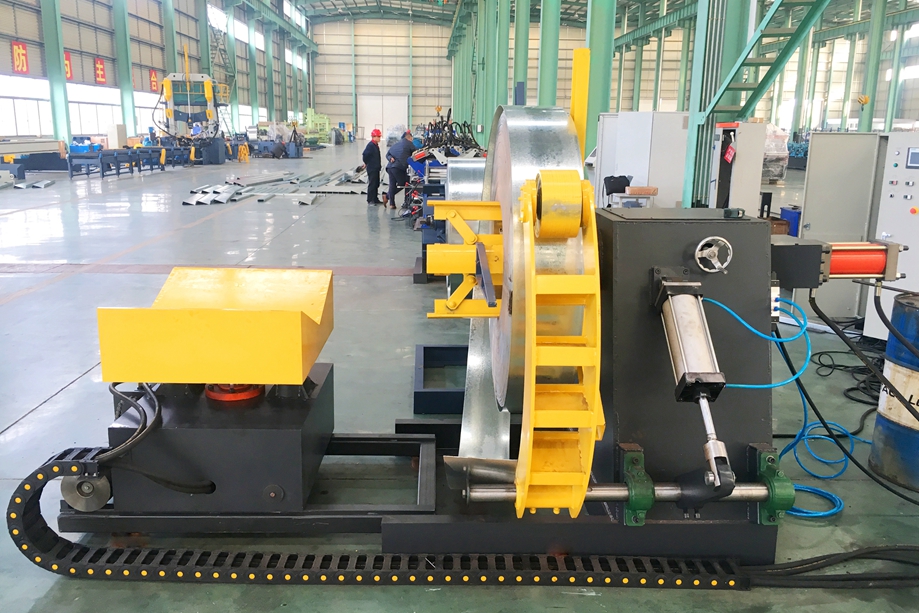

1 | Decoiler | 1 Nos |
2 | Main roll forming machine with punching and cutting units | 1 Nos |
3 | Hydraulic power station | 1 Nos |
4 | Control cabinet | 1 Nos |
5 | Spares and tools | 1 Nos |

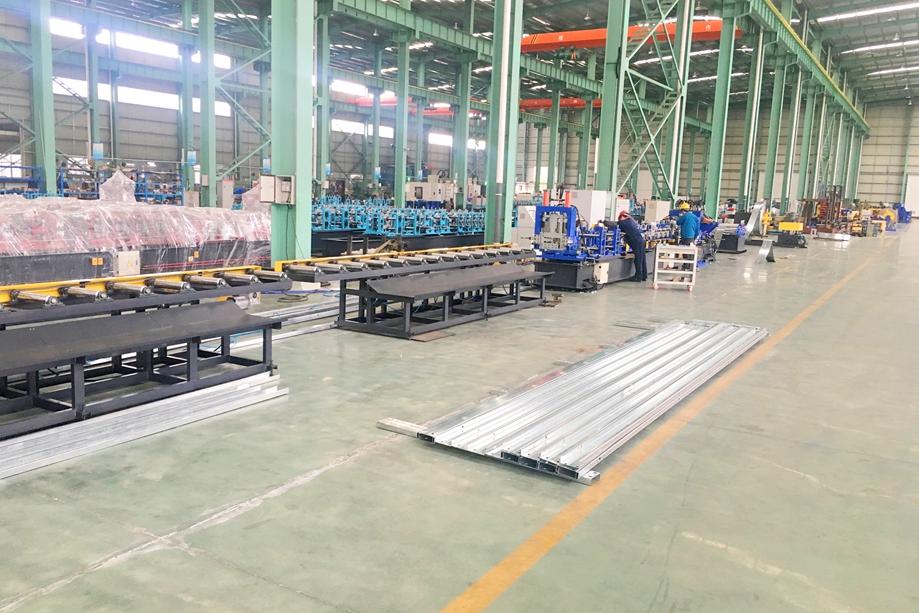

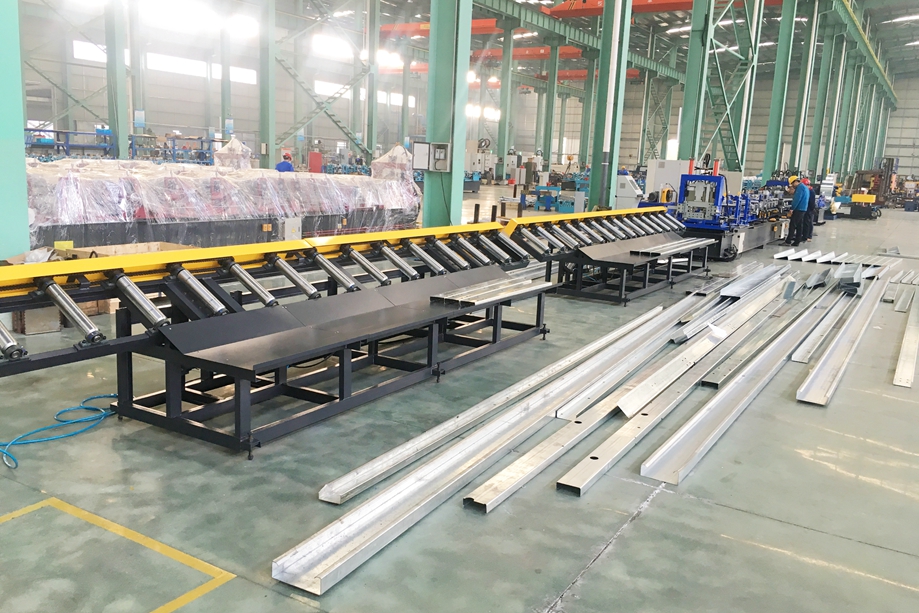

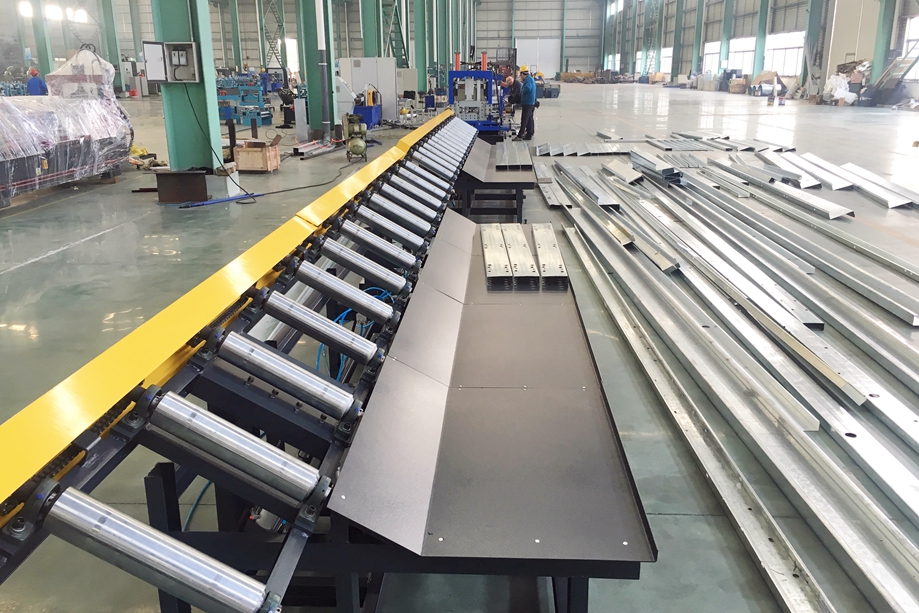

6 | Out-put table | 2 Nos |
