EPS Sandwich Panel Machine

EPS Sandwich Panel Machine Configurations | Model:  FH-6A

EPS sandwich panel machine is widely used for making EPS wall and roof panel in pre-engineered steel building and structures.

The machine adopts PLC controller, fully automatic production, productivity is around 5m/min, VFD speed control, touchscreen display and friendly program installed.

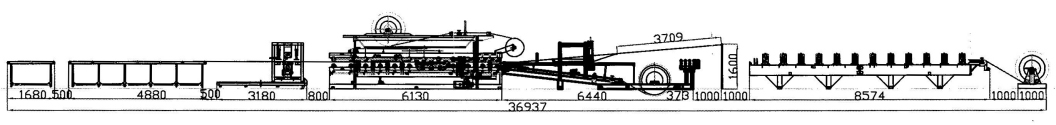

Flow chart:

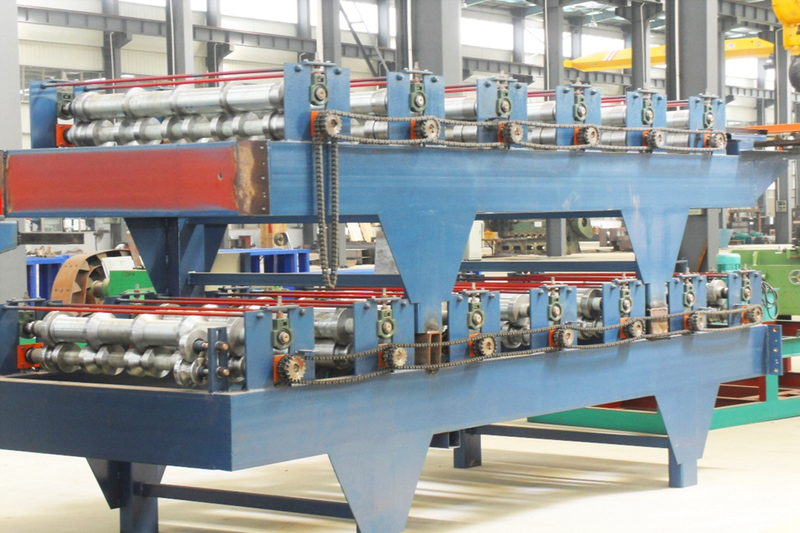

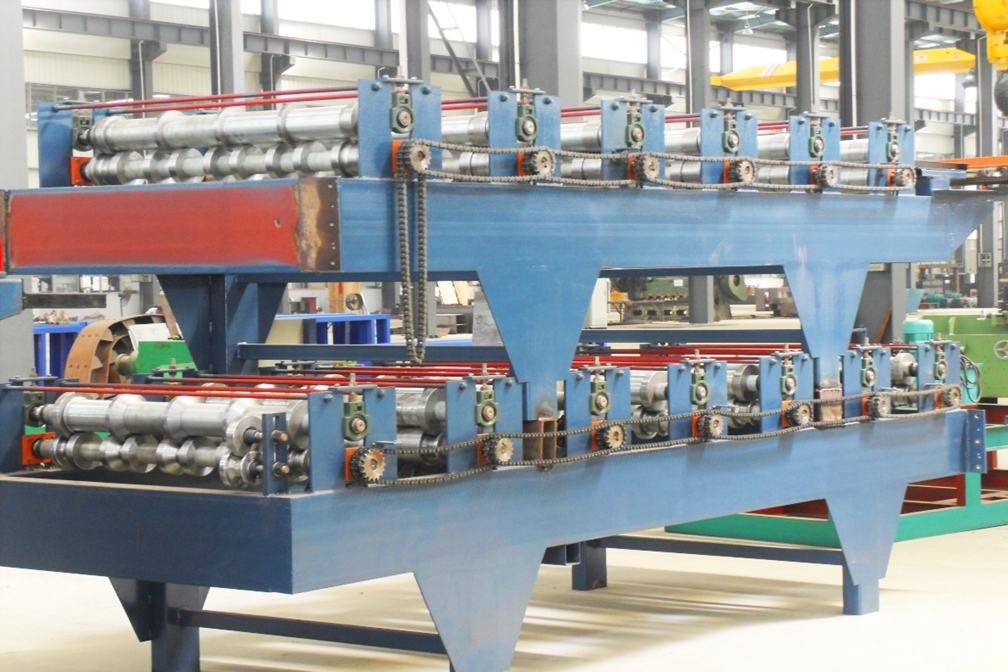

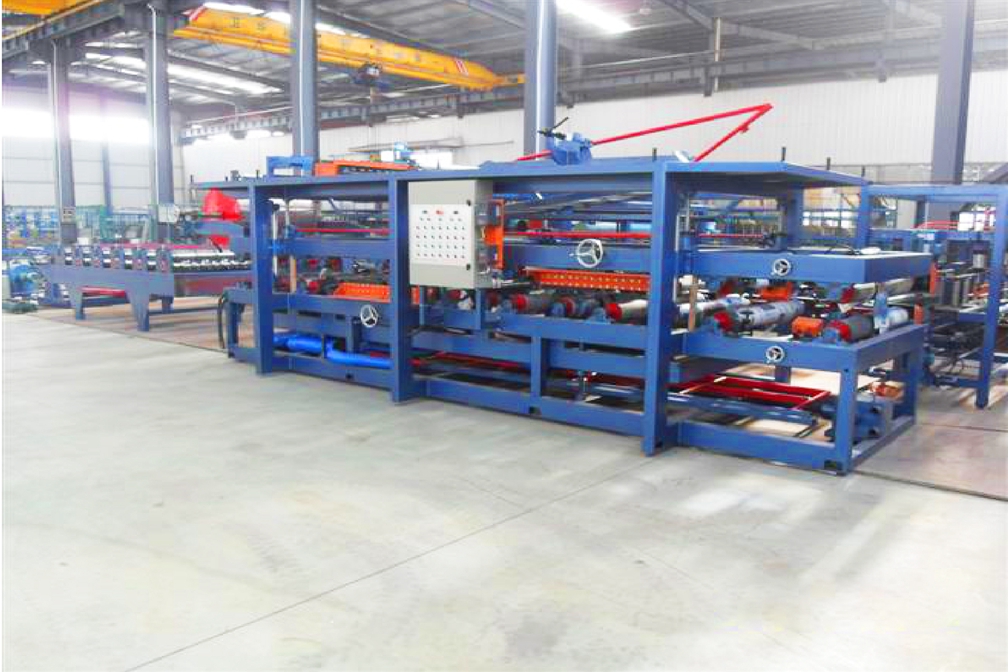

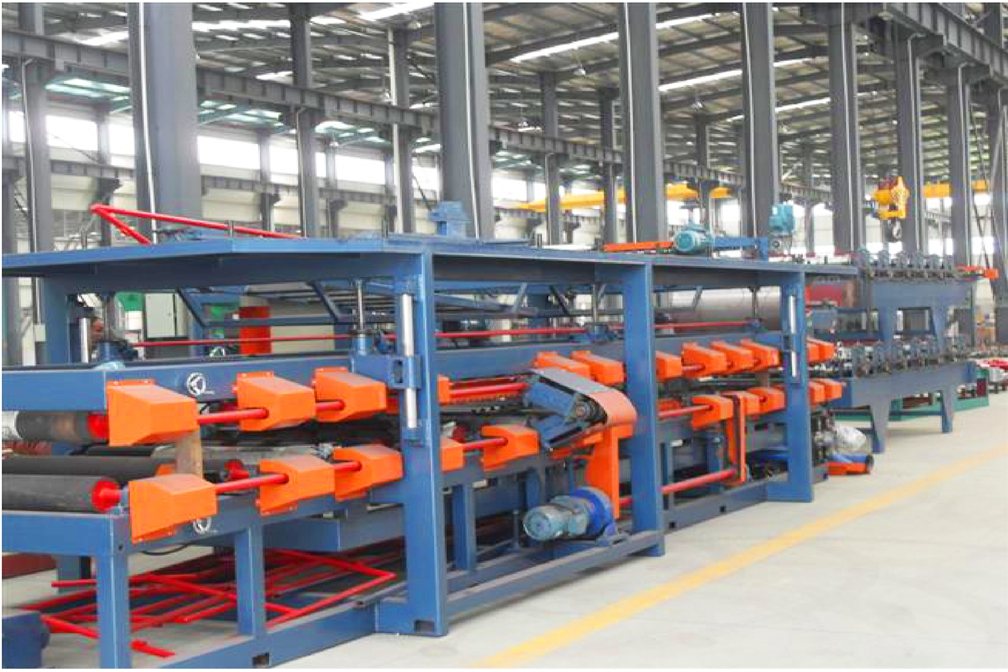

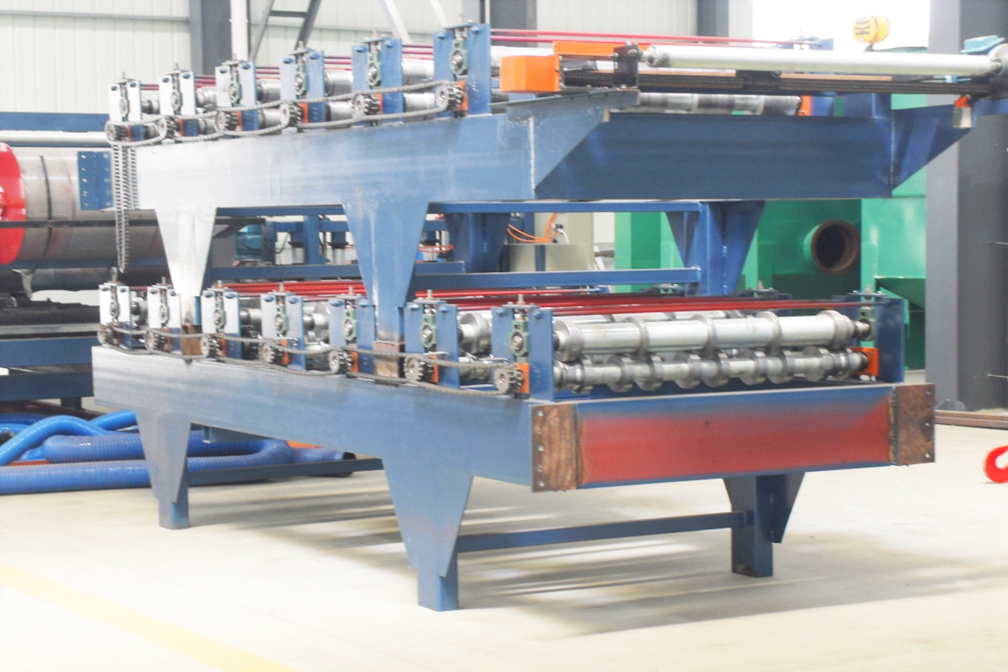

Top panel decoiling – Top panel roll forming — Back panel decoiling - Sandwich panel lamination unit - Saw cutting unit – Stacking

Main Parameters:

1. Electric: 380V 50-60Hz

2. Total power: approx 32kw

3. Line speed:0-6m/min

4. Product width:1000mm or 1200mm

5. Product thickness: 50mm - 250mm

6. Yearly production capacity: 600000m²
